Car Frame Repair & Straightening in Sun Valley, CA

It depends on the extent of the damage and the vehicle's value. Minor to moderate frame damage, bent rails, mash or sway damage confined to one area — is typically repairable and worth fixing, particularly if the vehicle is otherwise in good condition or is being covered by insurance. Severe damage involving twist or diamond conditions across the full structure may result in the vehicle being considered a structural total loss, where the repair cost exceeds what the car is worth.

1. Mash, compression along the length of the frame from a front or rear impact.

2. Sag, a section drops below the vehicle's horizontal plane.

3. Sway, a lateral bend left or right.

4. Twist, opposite corners of the frame sit at different heights.

5. Diamond, the frame is pushed out of square, with one side further forward than the other.

   Mash, sag, and sway are generally repairable with hydraulic straightening, welding, and sectioning. Twist and diamond across the full structure are more complex and sometimes result in a total loss determination.

While photos of the damage might be enough for an initial look, they’re definitely not enough for a precise assessment and repair cost calculation. A qualified shop can give you an honest read after a proper computerized inspection. So, unfortunately, there's no reliable way to assess this from photos alone.

If the repairs were performed by experienced technicians using computerized measurement systems to strictly follow the manufacturer's guidelines only then you can consider it safe. However, there are severe hidden dangers if ultra-high-strength steel or critical crumple zones were straightened instead of being completely replaced, as this fatally compromises the vehicle's structural integrity in a future crash. To make sure your vehicle’s frame is correctly repaired you can verify the work with computerized pre- and post-repair measurement printouts, or have the vehicle thoroughly inspected by a highly qualified independent collision center. At Dasa Auto Works we take frame repairs seriously and professionally. Our engineers We follow all manufacturer guidelines both in straightening and replacing works. This is a promise.

The main cost drivers are the number of pull points needed, whether welding or sectioning is required, the vehicle's make and model, and labor rates in your area. An itemized estimate from a shop with proper equipment is the only reliable way to get an accurate figure for your specific situation. Bring your car in for a detailed check-up and an accurate repair calculation.

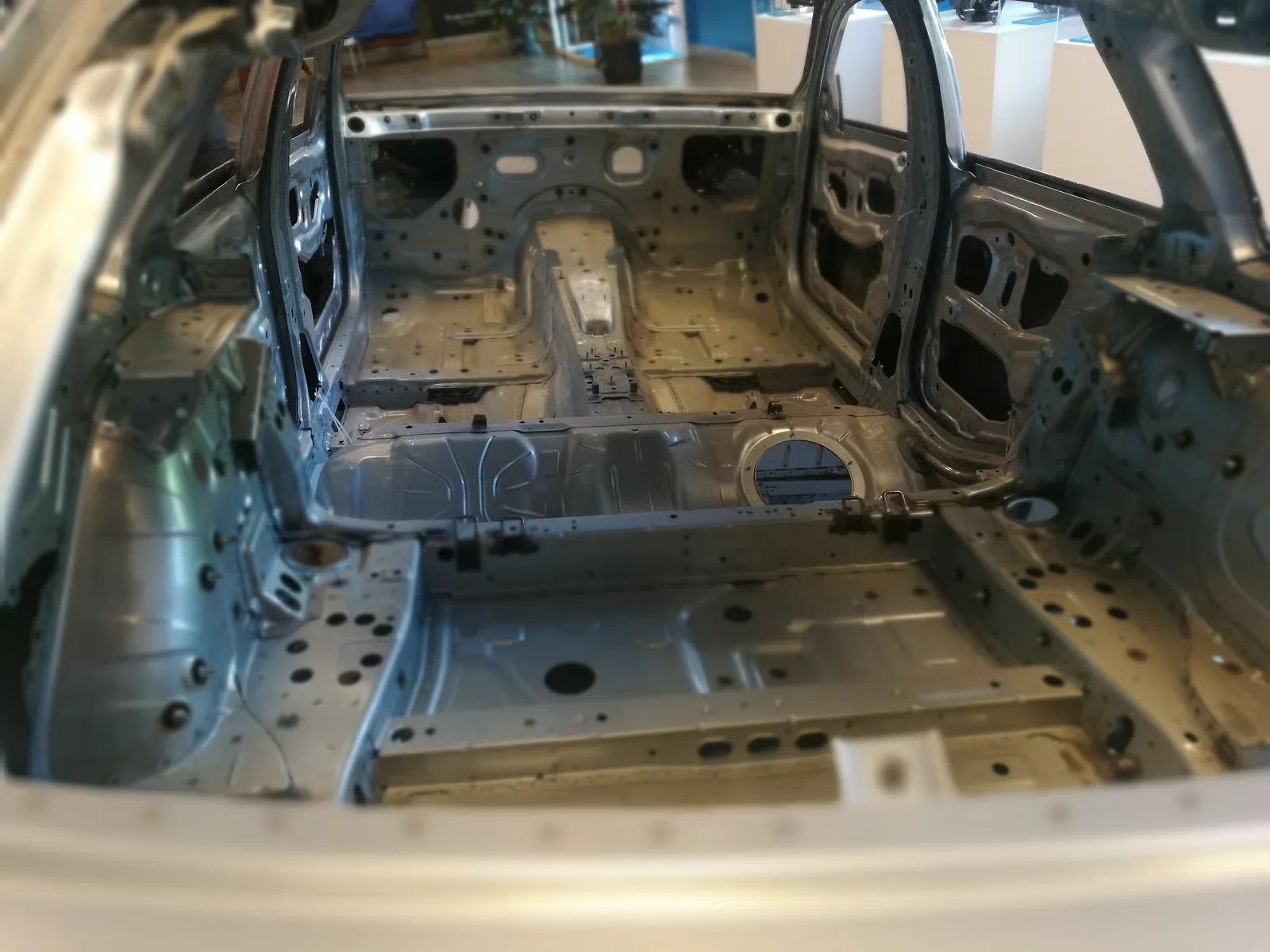

Most frame damage can be repaired, provided the damage is confined to sections that can be straightened or replaced. The key factors are the type of damage and how many areas of the frame are affected. Mash, sway, sag, and localized bend damage are generally repairable with hydraulic straightening, welding, and sectioning. Twist or diamond damage spanning the full structure is more difficult and sometimes crosses into total-loss territory. Modern passenger cars use unibody construction, meaning the frame and body are a single integrated structure. Repairs require precision measuring and equipment, so make sure the body shop you choose has both the equipment and the specialization to get it done the right way. Dasa Auto Works is a qualified shop and we straighten frames to factory specs for breakfast.

Yes, in many cases. Surface rust,oxidation that hasn't penetrated deeply into the metal, can be treated, ground back, and sealed with protective coating. More advanced rust that has created pitting or localized holes can often be cut out and replaced with welded steel sections, which is significantly less expensive and complex than a full frame replacement. The threshold for repair versus replacement is when rust is widespread across multiple structural members, compromising the frame's overall integrity.

If you push a screwdriver into a rusted area and it penetrates the metal easily or large flakes break free, the damage is likely beyond a localized fix.

Frame rust repair is less common in California than in salt-belt states, but it does occur, particularly on older vehicles or those with neglected undercarriages.

Yes. Modern frame machines use hydraulic rams capable of applying tens of thousands of pounds of force at precise angles, guided by computerized measuring systems that compare the vehicle's actual geometry to factory specifications in real time. The process is standard practice in professional collision repair and, when done correctly, restores the frame to within factory tolerances. One important nuance: where metal has been bent, it hardens at the bend point. Technicians use stress-relief techniques during straightening to restore the steel's original strength, not just its shape. The result is a structurally sound repair, not just a cosmetically aligned one.

Straightening a crooked or misaligned frame is not a DIY job. It requires a frame machine, computerized measuring equipment like our Car-O-Liner Frame Measuring System, as well as trained technicians who understand structural repair tolerances. The process involves securing the vehicle to the machine, identifying the precise measurement deviations from factory specs, and applying hydraulic force at calculated points to return the frame to its correct geometry. Any attempt to straighten a frame with improvised equipment risks creating additional damage, stressing metal incorrectly, or missing secondary damage elsewhere on the structure. If you're in or near Sun Valley, CA and suspect frame misalignment after a collision, bring the vehicle in for a free inspection, the measurement process alone gives you a clear picture of what's actually out of spec.
